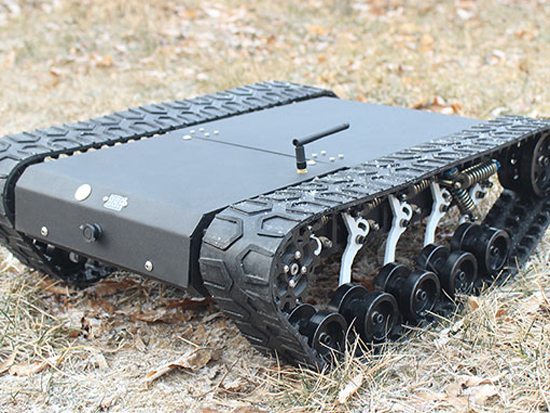

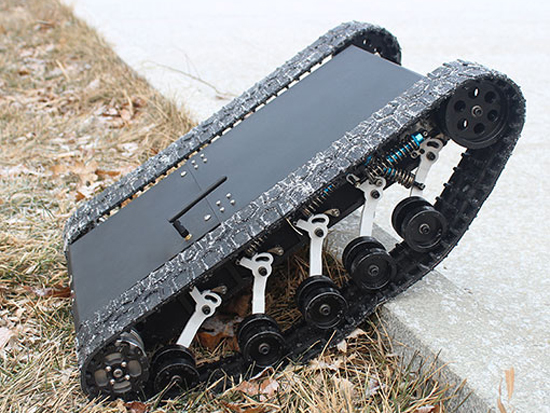

C6 Rubber-tracked robot chassis

Description Parameter Related Products Inquiry

Description

Application:

1. Analyzing the inspection
2. The ambulance
3. Scientific research and education
4. Designed as fire fighting robot
5. Exclusive photography
6. Special transport

Features
1. The body's aluminum alloy structure makes it lightweight.
2. With ten hydraulic springs for damping, it is more stable.
3. A strong grip and excellent performance when climbing.

Features

1. The body is made of aluminium alloy, light weight.
2. 10 hydraulic damping shock absorbers, more stable.
3. Superior grip, perfect obstacle-crossing performance.

Parameter

Item	Data	Item	Data
Size	610 * 480 * 180mm	Internal Size (Excluding Battery)	260 * 270 * 80mm
Weight	18KG	Speed	0 - 5km / h
Ground Clearance	70mm	Degree of Protection	IP54/IP65
The Biggest Leap	100mm	Load capacity	10KG
Maximum Climbing	30 °	Span Vertically	150mm
Track Material	Rubber (Kevlar Embedded)	Track Width	80mm
Suspension System	10pcs damping shock absorber	Body Material	304 Stainless Steel / Alloy Steel / Aluminum / Carbon Fiber
Surface Treatment	Black Spray (Matte)	Drive Wheel Diameter	70mm
Rated Torque	6.6N · M	Transmission Ratio	1:10

Electrical Part Technical Parameters

Voltage	DC24V
Total Power (Max.)	400w
Brake Type (Optional)	Electric Brake Type
Encoder (Optional)	1000-2500TVL
Remote Control Distance	800m (Visual)
Motor Selection	DC Brushless Motor
Standby Power Consumption	≤ 50w
Braking Voltage	DC24V
Drive Model	2435
Number of Remote Control Channels	9T (3T Used)
