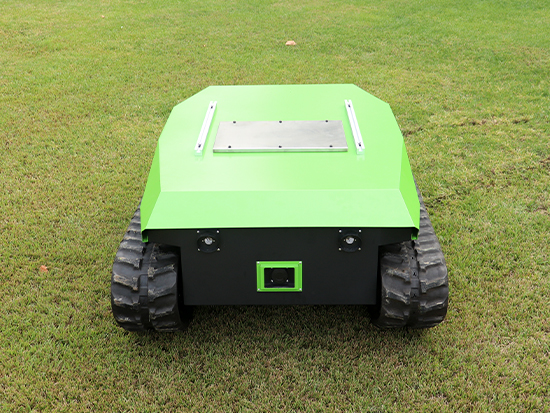

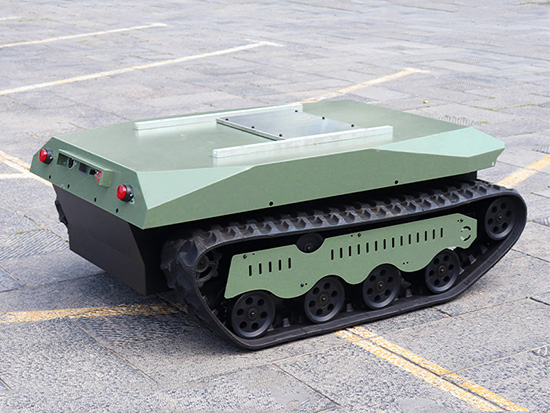

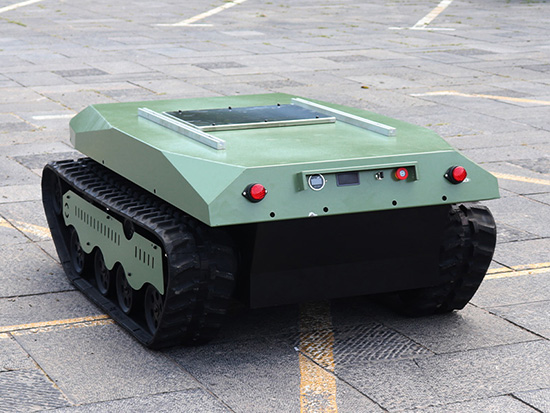

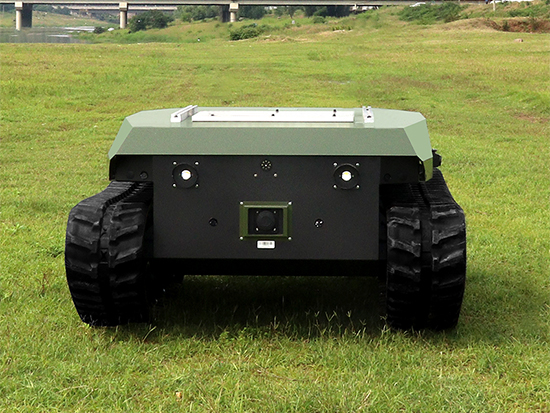

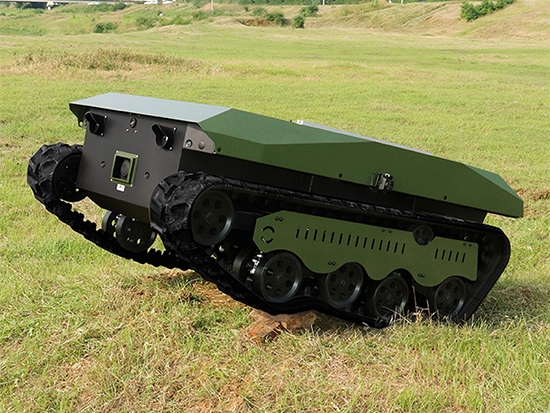

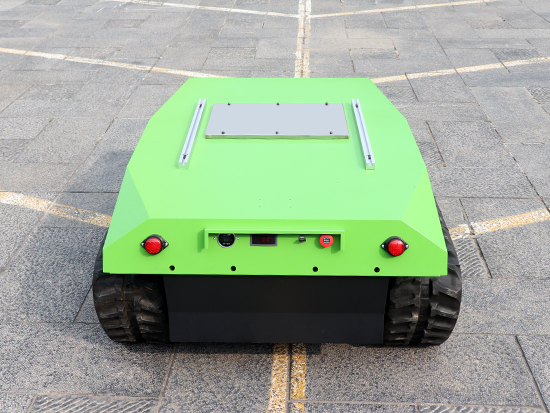

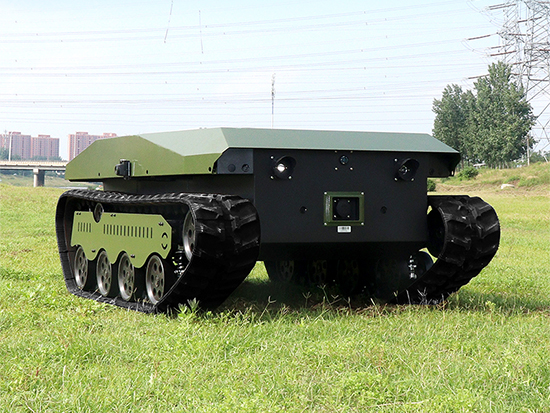

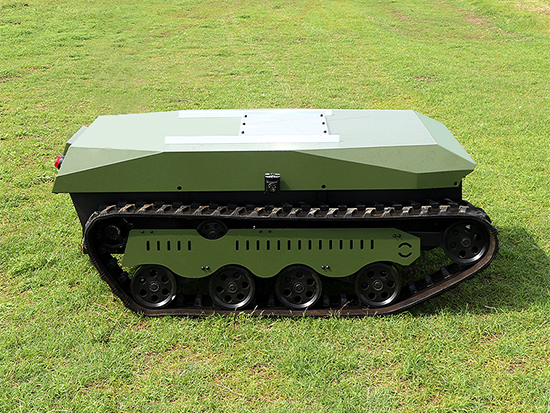

TC17 Robot chassis

Description Parameter Related Products Inquiry

Description

Description

The TC17 robot chassis can be used as a heavy goods delivery vehicle and mobile substation.

Application
It can be used for various customization applications such as intelligent farm machines, fully automatic lawn mowers, etc.

Features:
1. Standard structure with excellent strength and light-weight. The density and durability of this machine are guaranteed by the profiled steel and sheet metal skin structure.
2. A T-slot expansion platform and slider that can support a wide range of devices.
3. High speed, large axle torque, and electronic switching.
4. Increase power from the outside and use it as a portable power station.
5. It is ideal for driving at night, and the application is high-power LED turning lights at front and rear.
6. The Matilda grip system has excellent low-speed impact absorption results. It can withstand the effects of the step. There are fewer wearing components and more reliability since the two wheels have signal
control.
7. Precise automatic navigation can be achieved by moving and controlling speed.
8. The power conversion model includes protection against more stress than current and more than voltage several times.
9. There are three different control modes: network control (optional), visual control box (optional), and portable remote control. (standard).

10. Maximum 30km/h high speed customizable.
With 2-10 km/h low speed, it will be stopped by the self-locking resistance of the worm gear reducer.
With 10-20km/h medium speed , it’s automatically locked by the internal contracting brake.
With 20-30km/h high speed, it has both internal contracting brake and electromagnetic brake.
High, medium and low three-speed precise control on remote controller for speed ≥10km/h.

Parameter

Item	Data	Item	Data
Dimension	18001170660mm	Speed	2.5-12km/h (maximum 30km/h high speed customizable)
Self Weight	400kg	Designed Load	300-700kg
Waterproof	IP65	Rated Torque	300-1920NM
Track Width	230mm	Reducer Efficiency	65-85%
Gear Ratio	1:10-1:40	Suspension System	Matilda

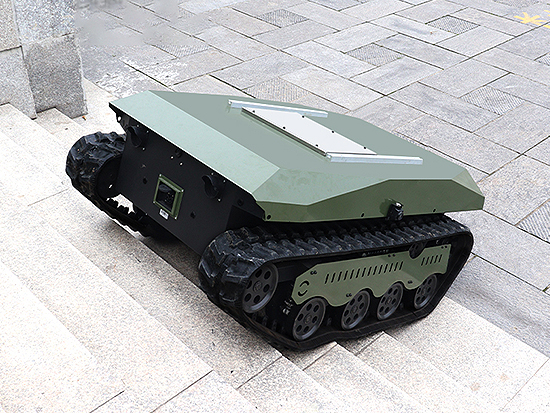

Motor	(1.5-5.5KW)2, (11kw2 can be customized)	Climbing Ability	≤30°(can climb stairs)
Motor Rated Speed	1500r/min	Maximum Span	230mm
Ground clearance	200mm	Over-Obstacle Capacity	310mm
Track grounding length	900mm
