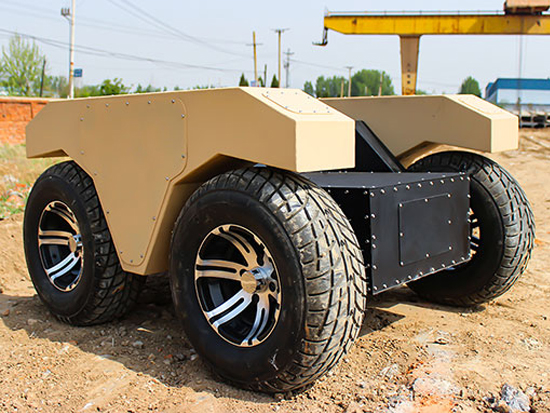

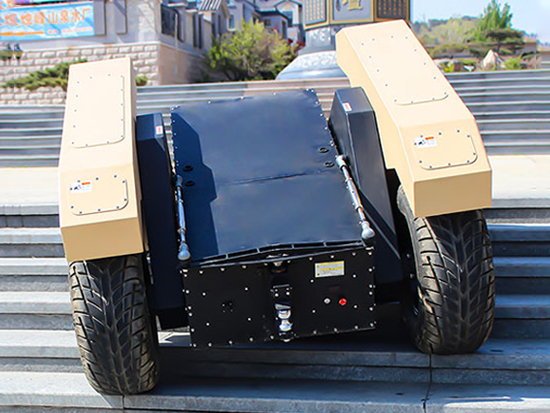

L15D Heavy-duty robot chassis

A robust wheeled robot chassis with exceptional load capacity and balance capabilities is the 4WD robot chassis platform.

Size :

1530（±5）*1485（±5）*830（±5）mm

Speed :

15KM/H

weight :

500kg

Load capacity :

<250KG

SEND MESSAGE Get price on whatsapp

Description Parameter Related Products Inquiry

Description

L15D Heavy-duty robot chassisis a versatile, high-performance wheeled robot chassis with a dual-link balanced suspension for stability on rough terrain. It uses two 6kW DC brushless motors for speeds up to 20 km/h and supports up to 250 kg. The four-wheel drive and advanced suspension reduce body movement, minimize radar blind spots, and lower accident risk.

Application

1. Investigating the inspection
2. Education and scientific research
3. Exclusive photography
4. Special transport

Parameter

Item	Data	Item	Data
Size	1530（±5）1485（±5）830（±5）mm	Speed	15KM/H
weight	500kg	Design load	<250KG
Body material	304SS/Alloy plate	Rated torque	14N.M
Gear Raito	1:25	Groud clearance	210mm
Over-Obstacle capacity	250mm	Climbing ablity	30°
Surface Treatment	Powder coat	Protection level	IP54 (can be made IP64)
Steering mode	Differential Steering	Motor	60V 6KW DC brushless motor
